TIA Portal Software Development, Part II (Online)

Online Training Course

Upcoming Session(s)

Tue8/31/21toFri9/3/21Online Event8:30 AM - 5:00 PMOnline EventSIGN UP

Join us for a LIVE! remote training from your home office or at your job site,
while our certified trainers are online!


Course Description

Length: 4 days
Hours: 8:30 AM - 5:00 PM
Cost: $2,500.00/person

The TIA Portal Software Development, Part II training class is second in a two part series.

This 4-day, instructor-led training course builds basic programming skills with Siemens STEP7 software.

Using the power of Totally Integrated Automation Portal (TIA Portal) to integrate PLC, HMI and Variable Frequency Drive (VFD) control, students will learn structure programming and implement functions and function blocks.
This is a remote, online course that will use a VFD and Motor to implement the labs. Software diagnostics tools will also be taught and will be used to debug both hardware and PLC programming.

All students will be remotely connected to the hardware, while the instructor is online.


Want to schedule a custom class with us? Just ask.


Prerequisites

Prior completion of TIA Portal Software Development, Part I is recommended before taking this course.

All attendees must be located in California, Oregon or Washington.

Please note, you must have reliable internet (wired is preferred) and provide your own computer. All hardware and
equipment will be connected remotely from an EandM training facility while the instructor is online.

For the best experience, it is highly recommended that you have two monitors (preferably with a 15" screen) for this course.


Objective

Upon completion of this course, each student shall be able to:

  • Implement PLC to PLC communication
  • Create Complex Memory types; Arrays, Structures and UDTs
  • Indirect addressing and SCL scripting
  • Use BiCo technology to communicate PLC and Drive
  • Manage Recipes and Alarms using HMI
  • Trend and Data logging at the HMI
  • Configure and Tune a PID loop



Course Outline

Section 1 Indirect addressing
Section 2 PLC to PLC communication
Section 3 SCL
Section 4 PID loops
Section 5 UDTs, arrays, structures
Section 6 Ring Topology
Section 7 HMI Alarms
Section 8 HMI Recipes
Section 9 Trending and data logging
Section 10 VFDs BICo control


Discounted Starter Kits

Due to worldwide supply shortages, EandM is not able to offer discounted starter kits
to workshop attendees at this time.

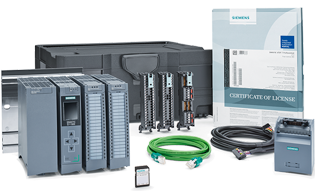

S7-1500 Starter Kit - $1,105 (List: $2,110)

Kit Contents:

  • SIMATIC S7-1500 CPU 1511C-1 PN
  • SIMATIC Memory Card, 4 MB
  • Mounting rail 160 mm
  • Power supply PM1507, 24V/3A, 120/230 V AC
  • License 1) for STEP7 Professional V16 (365 day Full version)
  • License 2) for SIMATIC ProDiag S7-1500 for 250 supervisions
  • License 3) SIMATIC OPC UA S7-1500 Small
  • Standard Ethernet CAT 5 cable
  • Screwdriver
